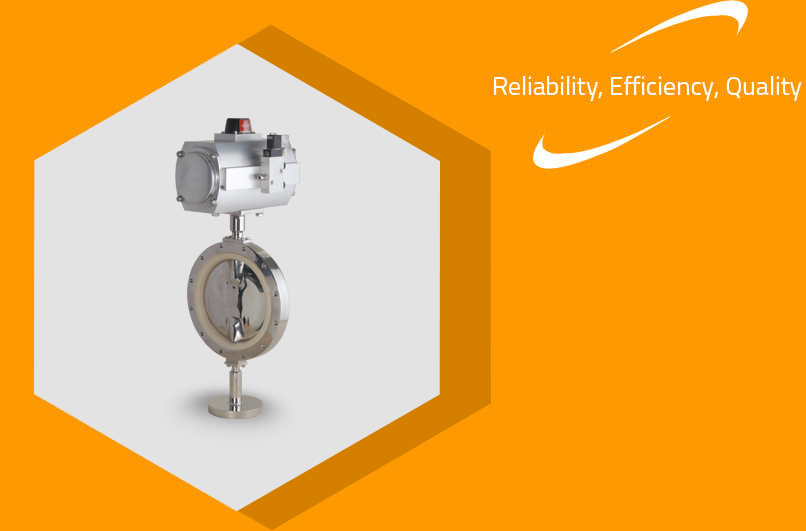

Wafer type slim body
butterfly valve with actuator
Slim design is tailor made having provisions for mounting holes on Butterfly-valve Body itself matching mounting dimensions as per requirement.
Valve and actuators are designed and manufactured as per GMP norms.
- Mounting Interface
ISO 5211 - MOC of the Body
Aluminium (Special on request) - Trim
CF8, CF8M, CF3, CF3M (Mirror Polished) - Seat
Silicon, EPDM white (Food Grade) - Size
2”to 16”
- Pressure Rating
PN 6 PN 10 - Construction
Wafer Type, Mounting holes on valve Body
Wafer Type PTFE Seated Butterfly
Valve with SS Actuator
Valves and Actuators are designed and manufactured as per GMP Norms.
Complete SS constructed Valves, Actuators and Position Indicators are featured for highly corrosive atmospheric conditions, with ease and quick replaceable seat.
- Mounting Interface
ISO 5211 - MOC of the Body
CF8, CF8M, CF3, CF3M (Special on request) - Flap
CF8, CF8M, CF3, CF3M (Mirror Polished) - Seat
PTFE, Silicon - Back up Seal
Silicon, Viton
- Size
2”to 8” - Pressure Rating
PN 10 - Construction
Centric, Universal wafer type
Eccentric Designed
Butterfly Valve
(Soft Seated)
- Designed & Manufactured as per Industry Standards.
- Pressure testing API 609, API 598-2004, BS 6755.
Off centered disc ensures a progressive smooth and low friction operating, enables economic actuator selection.
Unique sealing system combined with eccentric disc provides an exceptional tight shut – off and vacuum sealing.
This design eases and reduces down time serviceable by just removing the retainer.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M (Special on request) - Trim
CF8, CF8M, CF3, CF3M (Special on request) - Seat
PTFE, RPTFE, CFT, GFT, CO8023
- Size
1½”to 24” - Pressure Rating
ASME 150#, ASME 300# - Construction
Single / Double offset, Universal wafer type
TC End butterfly Valve with
Actuator (Centric)
Designed and manufactured as per GMP Norms for Hygienic applications with PTFE seat. Mainly used in Pharmaceuticals and Food Industry. Ease to separate from pipe line to flush out periodically.
- Mounting Interface
ISO 5211 - MOC of the Body
CF8, CF8M, CF3, CF3M (Electropolished) - Flap
CF8, CF8M, CF3, CF3M Hastalloy, Titanium (Mirror polished) - Seat
PTFE, Silicon, White EPDM. (Food Grade)
- Size
1½”to 8” - Pressure Rating
PN 10 - Construction
Centric, Triclover type.
Lined butterfly Valve
with Actuator
- 2 Piece Designed Valve body with easily replaceable PTFE& PFA Sleeve with PFA, FEP and PVDF lined Flap.
- Designed for highly Corrosive Fluids and Acids.
- This design allows easy and quick in-line maintenance.
- Mounting Interface
ISO 5211 - MOC of the Body
Ductile Iron, WCB, CF8, CF8M, CF3 and CF3M with PTFE/ PFA Sleeve - Flap
WCB, CF8, CF8M, PFA,FEP,PTFE Lined - Backup seal
Silicon Viton
- Size
1½”to 24” - Pressure Rating
PN 10 (Higher pressure rating on special request) - Construction
Centric, Universal wafer type
Valve Body Lined with
Unlined Disc Butterfly
valve with actuator
Valve Body with PTFE / PFA Sleeve, without lined Flap butterfly valve is widely used for corrosive and powder application.
In this design the media comes into contact with PTFE / PFA Sleeve and valve Flap and not with the Valve body. This design allows easy and quick in-line maintenance.
- Mounting Interface
ISO 5211 - MOC of the Body
Ductile Iron, WCB,CF8, CF8M with PTFE, PFA Sleeve - Flap
CF8, CF8M, CF3, CF3M, Hastalloy, Titanium (Special on request) - Seat
PTFE, PFA - Back up Seal
Silicon, Viton
- Size
1½”to 24” - Pressure Rating
PN 10 (Higher pressure rating on request) - Construction
Centric, Universal wafer type
